10.1'' Capacitive Touch LCD Module for Healthcare Monitoring And Industrial Control Systems

Nom De Marque:	LB
Numéro De Modèle:	TDM101LB0106B
Nombre De Pièces:	50pcs
Prix:	To Be Negotiated
Détails De L'emballage:	Carton Box Or Wood Case
Conditions De Paiement:	T/T

Informations détaillées

Description du produit

Informations détaillées

Certification:

Taille:

10,1 »

Résolution:

1280x800 pixels

Technologie de liaison:

Liaison optique

Technologie tactile:

Touche capacitive projetée

Contact ESD:

±8KV, classe B

ESD Air:

±15KV, classe B

Supply Ability:

500pcs Per Day

Description du produit

10.1'' Capacitive Touch LCD Module for Healthcare Monitoring And Industrial Control Systems

Product Description:

The Touch LCD Panel (TDM101LB0106B) is a state-of-the-art interactive solution designed to deliver exceptional performance and reliability in various applications. Featuring advanced optical bonding technology, this Touch Display Screen ensures superior visual clarity and enhanced durability, making it an ideal choice for environments where both functionality and resilience are paramount. Optical bonding minimizes internal reflections between the LCD (G101EAN02.101) and the touch glass (ILITEK Touch Controller ILI2511), resulting in improved contrast, brightness, and overall display quality. This technology also helps to protect the display from dust, moisture, and other contaminants, extending the lifespan of the Touch Electronic Panel.

Equipped with Projected Capacitive Touch technology, the Touch LCD Panel offers highly responsive and accurate touch capabilities. This touch technology is widely recognized for its sensitivity and multi-touch support, enabling users to interact with the screen using multiple fingers simultaneously. Supporting up to 10 touch points, the panel provides an intuitive and seamless user experience, allowing for complex gestures such as pinch-to-zoom, rotate, and multi-finger swipes. This makes it an excellent choice for interactive applications in education, retail, industrial controls, and entertainment sectors.

Designed to operate efficiently in a wide range of temperatures, the Touch Electronic Panel supports an operating temperature range from -20℃ to 60℃. This robust thermal tolerance makes the panel suitable for deployment in challenging environments, including industrial sites and other locations where temperature fluctuations are common. The durable construction and reliable performance under extreme conditions ensure that the panel maintains its responsiveness and display quality without compromise.

Features:

Product Name: 10.1'' Touch LCD Panel
Resolution: 1280x800 Pixels
Standard Touch Interface: USB
Optional Touch Interface: IIC and RS232
LCD Interface: LVDS
Touch Technology: Projected Capacitive Touch
Bonding Technology: Optical Bonding
Ideal for use as an Interactive Screen Kit
Electrostatic Discharge (ESD) Air: ±15KV, Class B
Operating Temperature Range: -20℃ to 60℃

Technical Parameters:

Size	10.1''
Resolution	1280x800 pixels
Brightness	350nits
Viewing Angles	89/89/89/89
LCD Interface	LVDS
Touch Technology	Projected Capacitive Touch
Touch Points	Multi-touch, Up To 10 Points Finger Touch
ESD Air	±15KV, Class B
ESD Contact	±8KV, Class B
LCD Brand	AUO
LCD Model No.	G101EAN02.101
Bonding Technology	Optical Bonding
Touch Controller	ILI2511
Touch Interface	USB

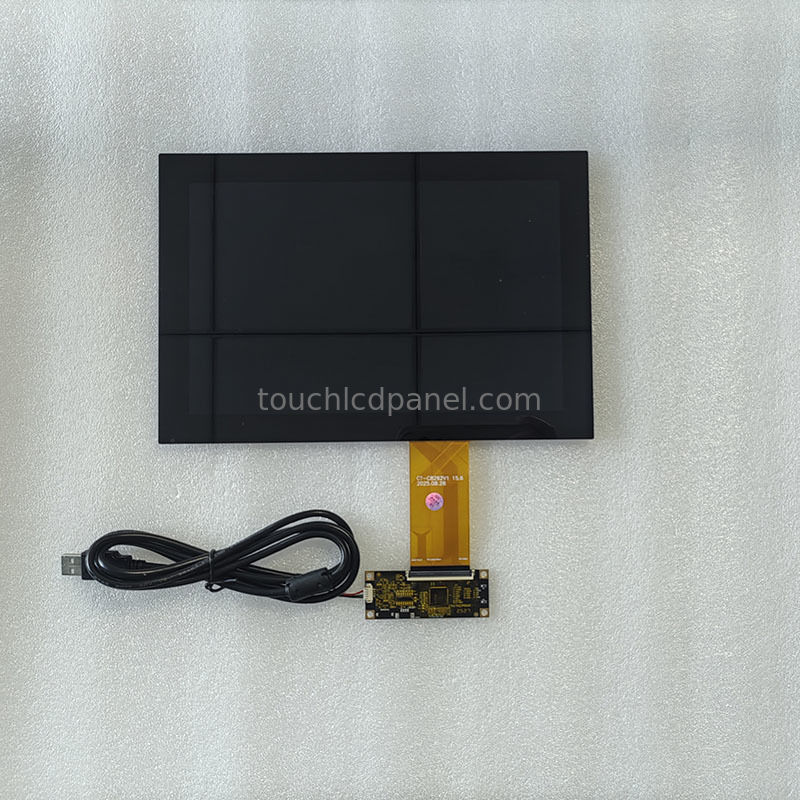

10.1'' Capacitive Touch LCD Module for Healthcare Monitoring And Industrial Control Systems 0

Applications:

In industrial settings, the TDM101LB0106 touch LCD panel with its ESD air protection of ±15KV, Class B, safeguards the device from electrostatic discharges, ensuring stable operation in challenging environments. With the LCD brand AUO integrated, the panel delivers vivid color and high-resolution visuals, which are essential for precise control systems, machinery interfaces, and monitoring stations.

The touch LCD panel is also widely used in medical equipment, where hygiene and reliability are paramount. The smooth glass surface and optical bonding reduce contamination risks while providing clear and sharp images necessary for diagnostic and patient monitoring applications. The customizable touch interface options allow seamless integration with various medical devices.

Retail and hospitality industries benefit from the LB touch LCD module by implementing it in point-of-sale (POS) systems, digital signage, and interactive product displays. The responsive projected capacitive touch technology enhances customer experience by enabling effortless navigation and interaction.

Welcome to discuss with our engineer upon the touch lcd module on your applications!
